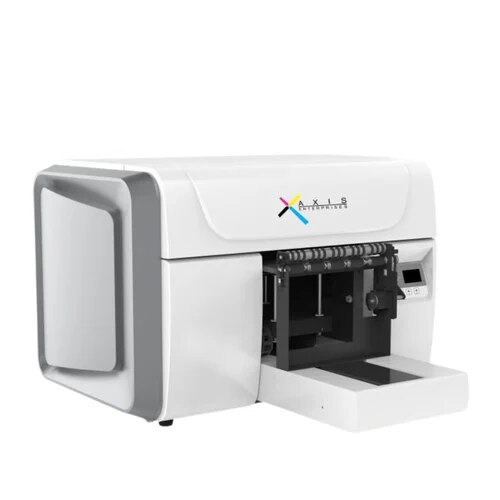

Flashjet Mini UV Printing Machine

PRODUCT PARAMETERS

Print head : EPSON I3200

Number of Print head : 1 Pc

Nozzle spray force range : 2-3mm

Number of nozzles : 3200 pcs

Distance between nozzles : 1/300 inch

Number of nozzle rows : 8

Maximum number of supported ink colors : 8

Effective print width : 300npi/1 row, 600npi/2 row, 1200npi/4 row

Effective print width : 33.8mm

Droplet ejection performance (droplet volume and ejection frequency) :

2 levels of grayscale 5 pl (43.2kHz)

3 levels of grayscale 6.12.5 pl (21.6kHz)

4 levels of grayscale 3.8, 6.2, 9.3pl (21.6kHz)

Rip Software : Future Rip

Print speed : 0.28-3sqm/h

Highest print resolution : 720 x 1200 dpi

Print Size : 297 x 420 mm

Print Version : White and color and varnish print at same time

Print mode : CMYK+W+V/CMYKLcLm+W/CMYKLcLmLkLIk/CMYK

Print height : 0-85 mm

Printer dimension : 1000mm*902mm*592mm

N.W. : 60KG

Packing : 1.12m*1.02m*0.78m

Size : 0.89cbm

G.W. : 80KG

Power : AC220/110V, 50HZ~60HZ

Working environment : Temperature : 20 C-28 C Humidity : 35%-65%

Connection method : Network cable

Ink type : Environmental UV curing ink

Ink store environment (shading) : Temperature : 20 C-28 C Humidity : 35%-65%

Graphic format : Tiff, Jpg, Eps, Pdf, Png

Launch : 2023

Place of origin : Mainland China

Packaging specification : Unit

Machine color : Silver & White & Black

Printer type : Digital inkjet printer
