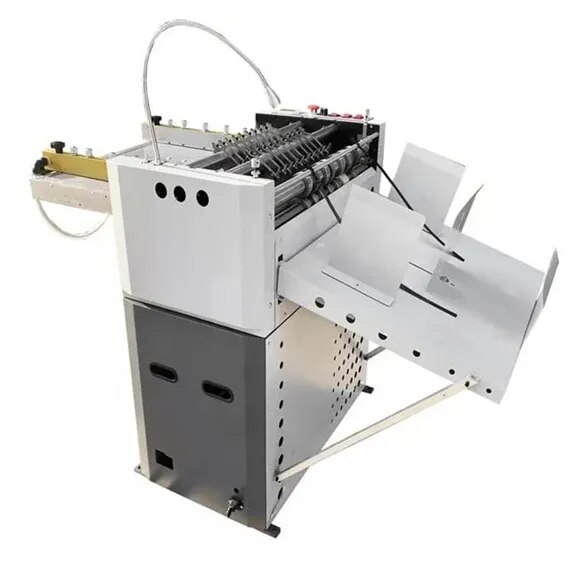

JH660+ Heavy Duty Creasing / Perforation Machine

Automatic Paper Creasing Perforating Sticker Cutting Machine/Automatic auto creasing machine can finish creasing,perforating and adhesive stickerhaalf cutting .It is a best choice for printing plant, photocopy centers.

Main Features:

This is multi-purpose machine, set adhesive sticker half cutting, creasing and

perforating.

Simple Operation, High efficiency, lowering manpower cost.

Flexible range of counter. This machine can pre-set count auto-shop and

delay on start.

Continuous bottom vacuum feeding.

Adopts wheel type creasing, not break the fibre of paper, eliminate the crack

of crease and ensure the good appearance of product.

The machine has scratch resistance and abrasion resistance cutting steel

roller. The machine hardness roller is hardened by quenching.

Automatic computing for the size of books line, high efficiency.

The distance between marks and the depth of mark is adjustable.

Specification

Max Paper Size:620x470

Min Paper Size:90x120

Sticker Knife:Straight Knife

Paper Weight:50-350g

Half Cutting Gap:2 mm

Min. Half Cutting Gap:7 mm

Speed:130m/min

Paper Feeding Way:Air Suction Type

Power:220V / 50Hz / 1050W

Weight:160 kgs

Dimensions:1400x870x1100 mm

Standard Configuration:20 Straight Knives,3 Creasing Moulds
