UV Printing Machine

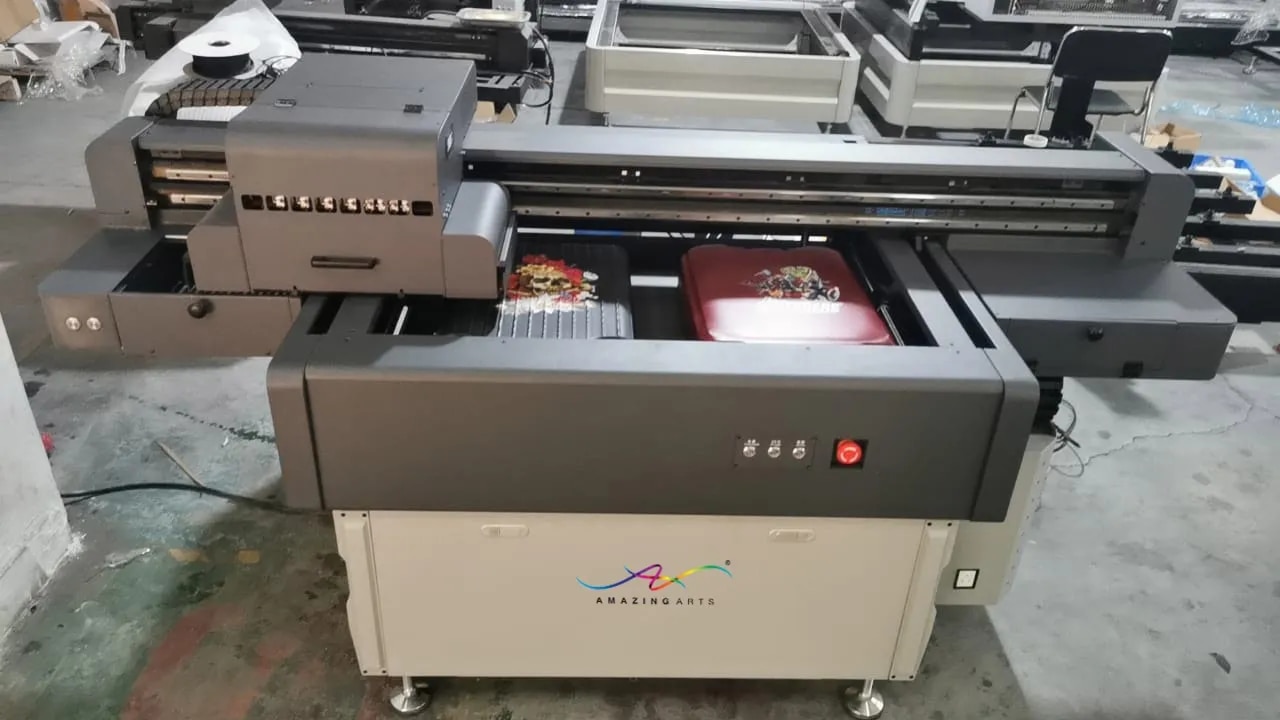

M9060 UV Printing Machine

Appearance : Black grey + medium grey

Print: Ricoh GEN5i/i3200u/XP600(1-4)

Rail : Double rail

Color : CMYK+Lc+Lm+White+Varnish

Flat bed size(mm) : 940 x 640

Print Thickness(mm) : Plate printing thickness0.1mm-380mm Cylinder print diameter 20mm-200mm (Ultra-high customizable)

Curing System : LED UV Lights

Image Format : TIFF/JPG/EPS/PDF/BMP

Rip Software : PHOTOPRINT/Maintop/Riin Rip-honson

Negative pressure : White and color separate negative pressure

Power Supply : AC220V 50HZ ±10%

Temperature : 20-32°C

Humidity : 40-75%

Power : 2500W

Appearance Size (mm) : Length/width/height:2065/1180/1005

Data Transmission : TCP/IP network interface

Net Weight(kg) : 400

Wooden box size(mm) : 2520X1550X1410

Suction system : 750W brand fans

Y-axis : Servo motor drive

Lead screw : Imported brand double Y screw

Automatic height measurement : The system drives the automatic height measurement function
