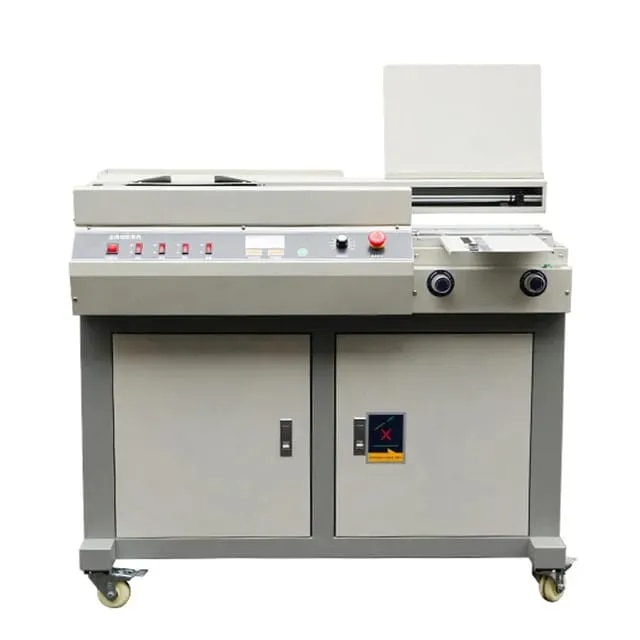

Glue Binding Machine 55H A4

1.High-speed linear guide-rail design: Reinforced double-rail design, double-rail structure is adopted to reduce running noise of cart so that it can be more stable and durable for operation.

2.Vertical lifting structure of clamping-surface platform: Vertical lifting platform structure: a high-power motor drives the rack to clamp tight to ensure firmer book spine.

3.High-strength clamp plate does not deform or distort: Thickened high-strength clamp plate structure and synchronous propulsion technique of bi-direction double-screw clamp plate is adopted, making books durable without deformation at clamping.

Specification

Max Binding Length : 320 mm

Max Binding Thickness : 55 mm

Glue Melt Time : Less than 20 mins

Binding Speed : 250 books/hour

Milling Cutter : 10 teeth sun milling cutter + small milling cutters

Glue Roller : Single Roller

Glue Type : Manual + Automatic

Display Mode : LCD

Spine forming adjustment method : Classic knob

Paper Milling : Two-fold

Power Supply : 220V

Power : 1000w

Net Weight : 130 kg

Machine Size : 1080*460*950mm

Gross Weight : 160 kg

4.Hard alloy milling cutter with perfect raking and fluting: Double-layer alloy milling cutter and 10-tooth disk milling cutter make clean raking and even fluting.

5.Fine tuning of square and round corners on the clamping surface: Left and right fine tuning of square and round corners on the clamping surface platform is useful for the customer to bind books perfectly.

6.Total aluminium alloy glue tank, smart temperature control: Traditional smart heating of glue tank and temperature control of program curve help the adhesive to reach its best state.

7.Samsung chip control on the main circuit board: The circuit board uses Samsung integrated circuit to control electronic components, which conforms to CCC certification requirements, and is safe and reliable.

8.Humanization design of book rest plate: Humanization design of book rest plate is convenient for cover access and saves working space.

9.Automatic circuit control: Intelligent circuit control, automatic check, photoelectric sensing and failure display.

10.Double-rail cart travelling, accurate brake motor positioning: Brake motor is used for high-speed travelling of cart to ensure that the cart can stop exactly at the right position.

11.One-button control of operation panel: Intuitive operation panel, one button operation, simple and convenient.
