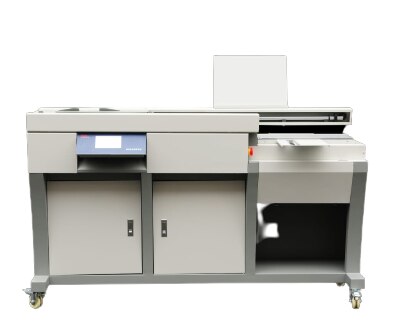

Single Clamp Glue Binding 460mm 60HCA3

1. Extra strong structure design, aluminium clamp plate made cart: High strength aluminium clamp plate structure and synchronous propulsion technique of bi-direction four rail clamping board are adopted, which are applicable to book binding of different types with various specifications, making books durable without deformation at distortion at clamping.

2. Double rail and brake motor design It uses the first-class international high speed solid double rail technology to make the cart travel at high speed and stop accurately with brake motor.

Specification

Max Binding Length : 460 mm

Max Binding Thickness : 60 mm

Glue Melt Time : About 20 mins

Binding Speed : 300 books/hour

Milling Cutter : 18 teeth sun milling cutter + small milling cutters

Glue Roller : Spine Glue + independent Side Glue

Glue Type : Manual + Automatic + fast mode

Display Mode : 7-inch touch screen

Spine forming adjustment method : Electric touch screen adjustment

Paper Milling : Two-fold

Power Supply : 220V

Power : 1400w

Machine Size : 1610*480*960mm

Gross Weight : 235kg

3. Double motor structure for clamping surface platform Patent design and double motor control achieves firm book binding and strong stability.

4. Digital adjustment of square and round corner effect of spine. Digital control is suitable for binding of paper and cover of different types.

5. Large screen display, function selection, easy to understand. Mobile phone like operation interface, extra-large screen display, easy to understand and simple to operate

6. High-power double milling cutters with perfect with raking and fluting Double-layer alloy milling cutter and 18-tooth disk milling cutter make clean raking and even fluting.

7. Traditional back gluing and separate side gluing Traditional glue-tank back gluing is used to get even and full gluing; with separate side gluing, the binding is firmer and the moulding is better.

8. Humanization design of book rest plate Humanization design of book rest plate is convenient for cover access and saves working space.

9. One-button setting Temperature, time, pressure and other parameters can be set up with one button, which is easy to understand and convenient to operate.

10.Self-diagnosis of motor and sensor faults Self-diagnosis and error report of photoelectric sensor and control circuit faults.

11.Automatic circuit control Intelligent circuit control, automatic check, photoelectric sensing and failure display.

12.Double-rail cart travelling, accurate brake motor positioning Brake motor is used for high-speed travelling of cart to ensure that the cart can stop exactly at the right
