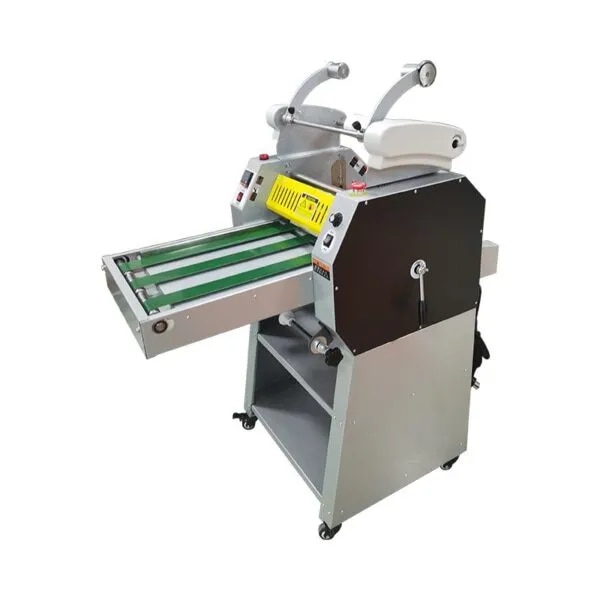

35E Thermal Lamination machine

Features

Suitable for all kinds of paper laminating, roll to roll lamination, double side lamination, finished product winding, single side anti curling and the laminating effect is flat and does not bend.

Multifunctioning body, with optional ironing function.

The conveyor belt feeds paper synchronously and the finished product is automatically wound up.

Large diameter mirror steel roller, 100mm in diameter, chrome plated on the surface, the mirror effect is good.

The laminating pressure is very compact, and the laminating effect is good, no bubbles, no snowflakes.

Intelligent temperature control system, precise temperature control, the highest temperature is 160 degrees, temperature out of control alarm system, double protection.

Large power 80W AC wheel box geared motor, which can rotate forward/reversely, without extreme speed regulation, the fastest laminating speed is 6m/min.

Specifications

Max. Laminating Width:350 mm

Max. Laminating Thickness:2 mm

Laminating speed:0~6m/min

Lamination:Both side

Hot Laminating Temperature:160 degree celsius

Display:LCD

Steel Roller Diameter:100 mm

Rubber Roller Diameter:75 mm

Heating Method:Infrared Heating By Hot Air

Auto Curling function:YES

Heating Power:1600 W

Motor Power:80W

Power Supply:AC 220V, 50Hz
