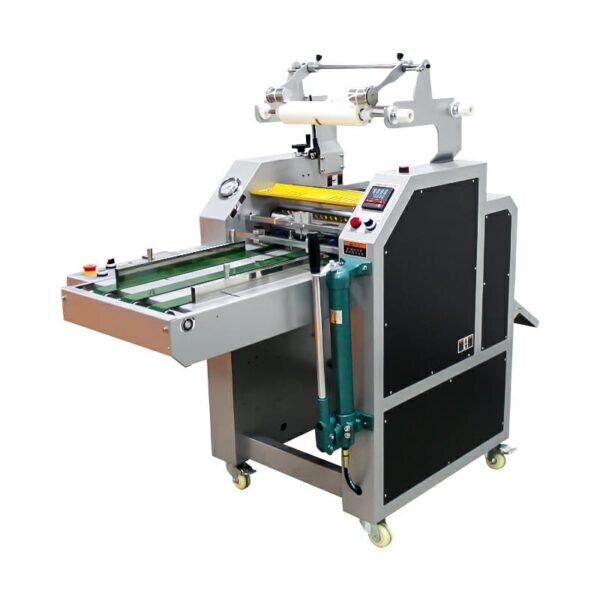

39H Thermal Lamination Machine
Description
Features
PLC Intelligent control, touch screen display system, frequency conversion speed regulation, 250W three phase AC wheel box geared motor.
The synchronous conveyor belt automatically feeds paper, automatically overlaps the size (the overlap size can be set arbitrarily), and the finished product is automatically divided (pneumatically divided).
Intelligent temperature control, double protection of temperature out of control alarm, infrared internal heating.
Manual hydraulic control system, anti-vibration pressure indicator.
Single side anti-curling, equipped with trimming cutter and dotted cutter.
The diameter of the steel roller is 110mm, and the diameter of the lower rubber roller is 75mm.
The lower rubber roller is made of non-adhesive and high temperature resistant silica gel.
Specifications
Max. Laminating Width:390 mm
Max. Laminating Thickness:2 mm
Laminating speed:0~8m/min
Lamination:Single side
Hot Laminating Temperature:160 degree celsius
Display:LED
Steel Roller Diameter:110 mm
Rubber Roller Diameter:75 mm
Heating Method:Infrared Internal heating
Auto overlap function:YES
Auto pull off function:YES
Heating Power:1600 W
Motor Power:250W
Power Supply:AC 220V, 50Hz
