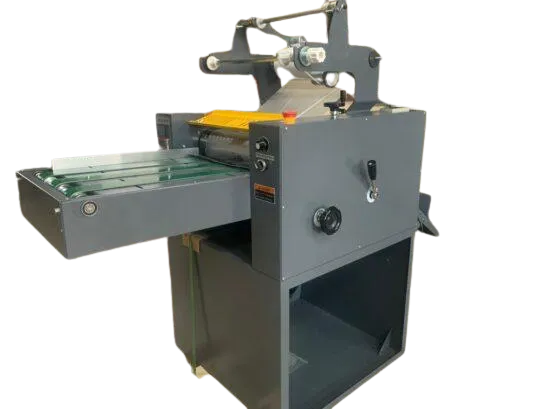

35EP Thermal Lamination Machine
Description
Features:
Synchronous conveyor belt automatically feeds paper, intelligent automatic breaking system, no need for air compressor.
Intelligent temperature control, infrared heating.
Single side anti-curling function.
80W gearbox motor.
Thicken the mold spring and bias the wheel pressing system
Equipped with trimming cutter and dotted cutter
The diameter of the steel roller is 110mm, and the diameter of the lower rubber roller is 75mm.
The lower rubber lower is made of non sticky and high temperature resistant silicone.
Specifications:
Max. Laminating Width:350 mm
Max. Laminating Thickness:2 mm
Laminating speed:0~6m/min
Lamination:Single side
Hot Laminating Temperature:160 degree celsius
Display:LCD
Steel Roller Diameter:100 mm
Rubber Roller Diameter:75 mm
Heating Method:Infrared Internal Hot Air
Auto Curling function:YES
Auto pull off function:YES
Heating Power:1600 W
Motor Power:80W
Power Supply:AC 220V, 50Hz
