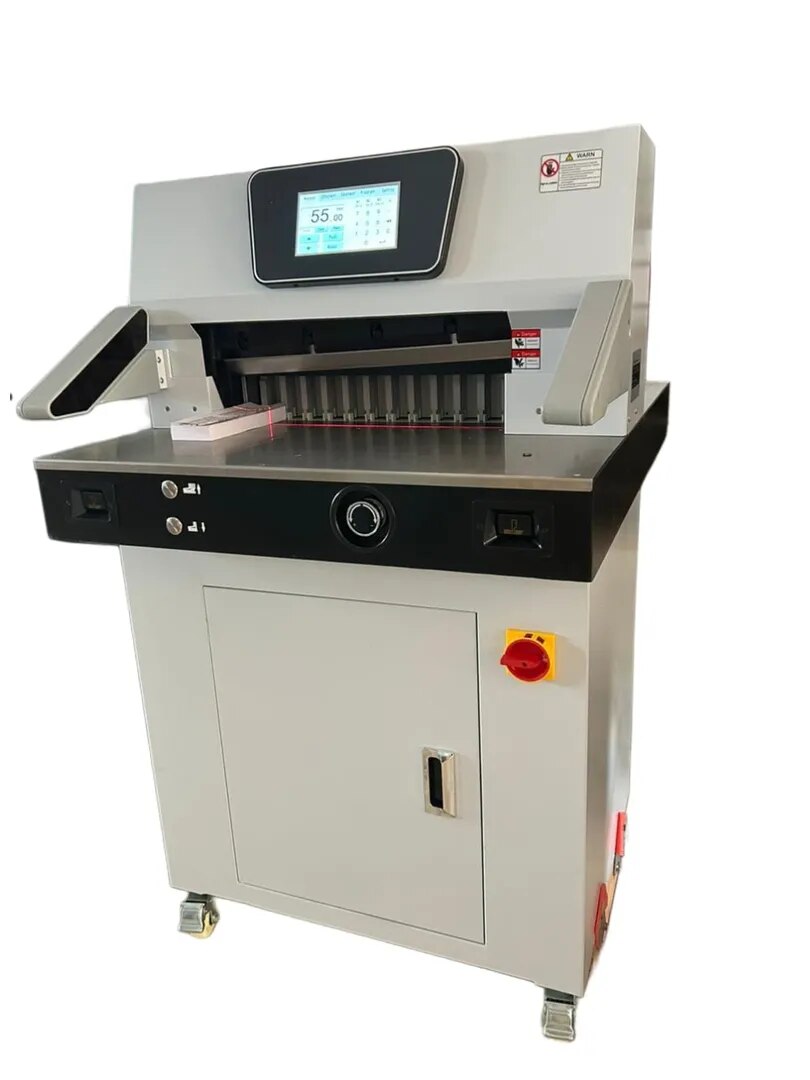

M500E Electric Paper Cutting Machine
Description
Features
CE standard design, front and rear safety protection design, in line with product
safety requirements
Independent paper pressing and paper cutting structure design device
Patented oblique knife paper cutting technology, smooth and easy cutting, suitable
for thick paper cutting
Technical device for fine-tuning the depth of the cutter
Double guide rail push paper structure design device
Intelligent control, LCD display, program optimization and upgrade, adjustable paper pressure; multiple self-checking functions, Fault code display function, counting
function
Cut position indication line: Infrared laser light
Specification
Max. Cutting Size:500 mm
Min. Cutting Size:25 mm
Max. Cutting Thickness:80 mm
Cutting Accuracy:± 0.2 mm
Clamping Mode:Electric Push Mode:CNC
Display:7 Inch Touch screen
Infrared Light:Available
Power Supply:220V ±10%, 50 Hz
Power:750 W
Net Weight:200 Kg
Machine Dimension:990x790x1200 mm
