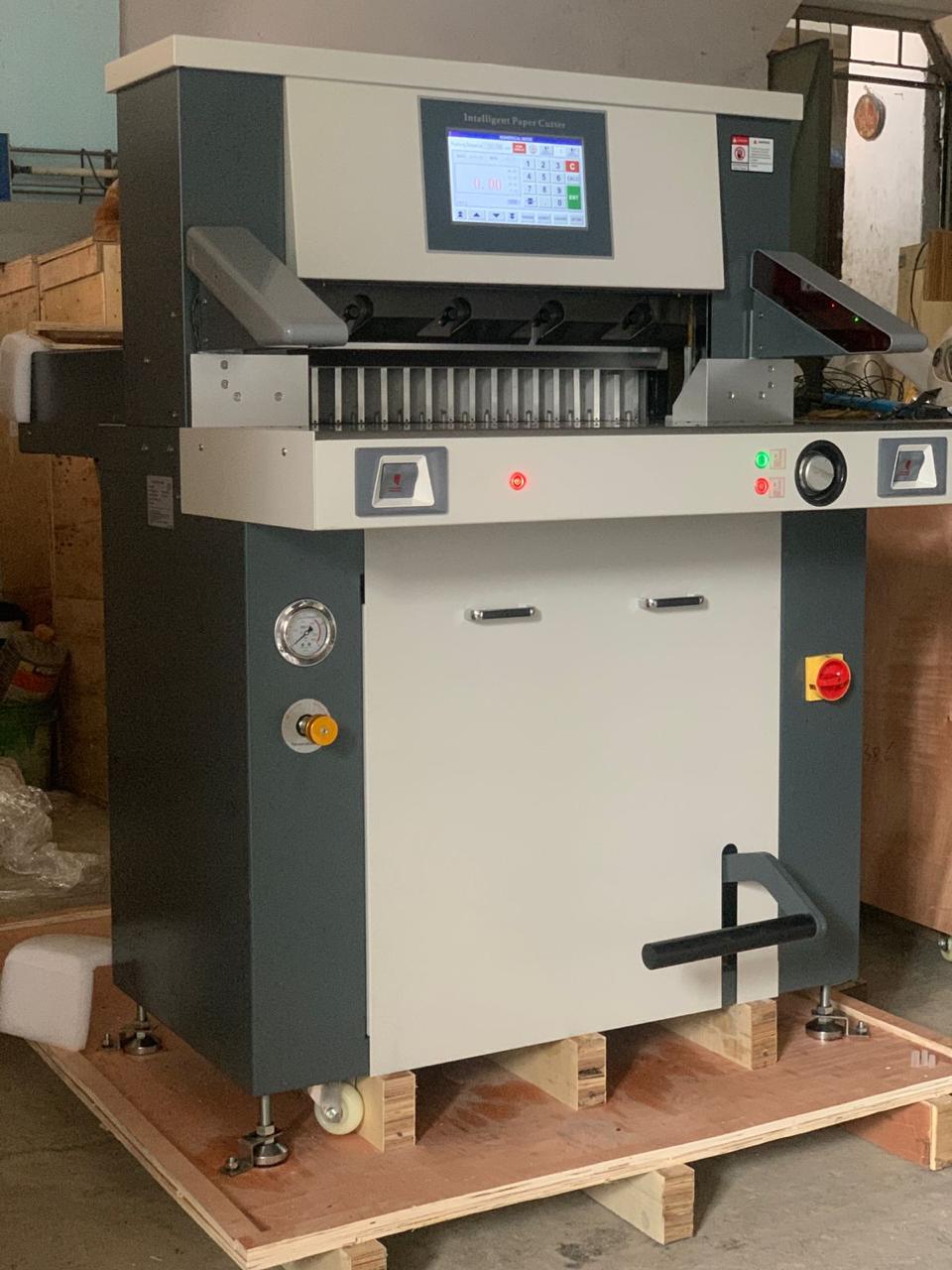

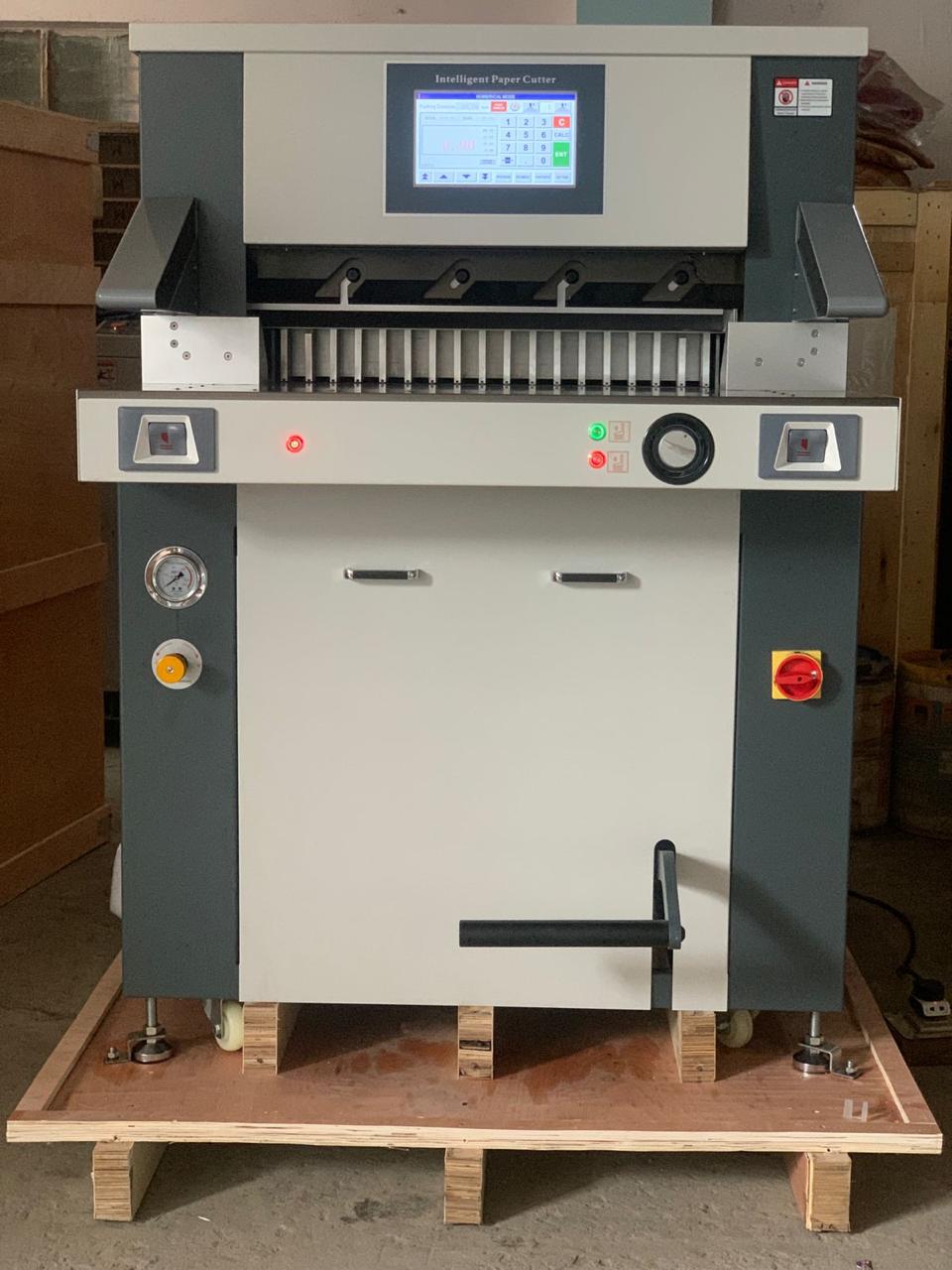

M670 HP Hydraulic Paper Cutting Machine
Description
Features
Thickened whole structure, thickened the blade carrier, more durable.
Thicken aviation aluminium plate with ball table, easy feeding the paper.
Push book platform can be folded, convenient transportation
10.1 inch touch screen, easy to operate.
100groups*96steps program for repeat cuts.
Cutting thickness is 80mm.
Top ball screw, more accurate for cutting.
Push paper size error compensation function, program correction size error, easy to adjust.
Auto push book, guided on both sides for pushing paper.
Electronic hand wheel for backgauge position with variable speed.
Adjust blade outside of machine.
Specification
Max. Cutting Length:670 mm
Min. Cutting Length:30 mm
Cutting Thickness:80 mm
Cutting Precision:± 0.2 mm
Clamping Mode:Hydraulic+Mechanical Pedal
Front Platform:10 mm Hard Aluminium Bed
Display:7.0" Touch Screen
Program:100*96 cuts
Power Supply:100*96 cuts
Power:220V 50Hz, 2.3 KW
Net Weight:about 450 Kg
Machine Dimension:1400 x 1150 x 1460 mm
