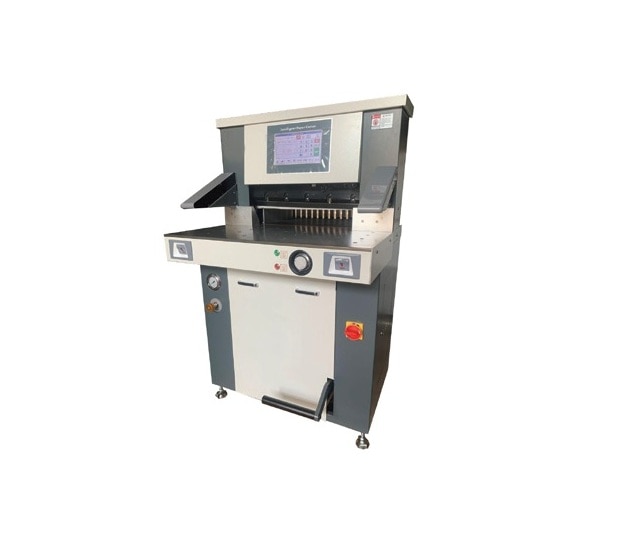

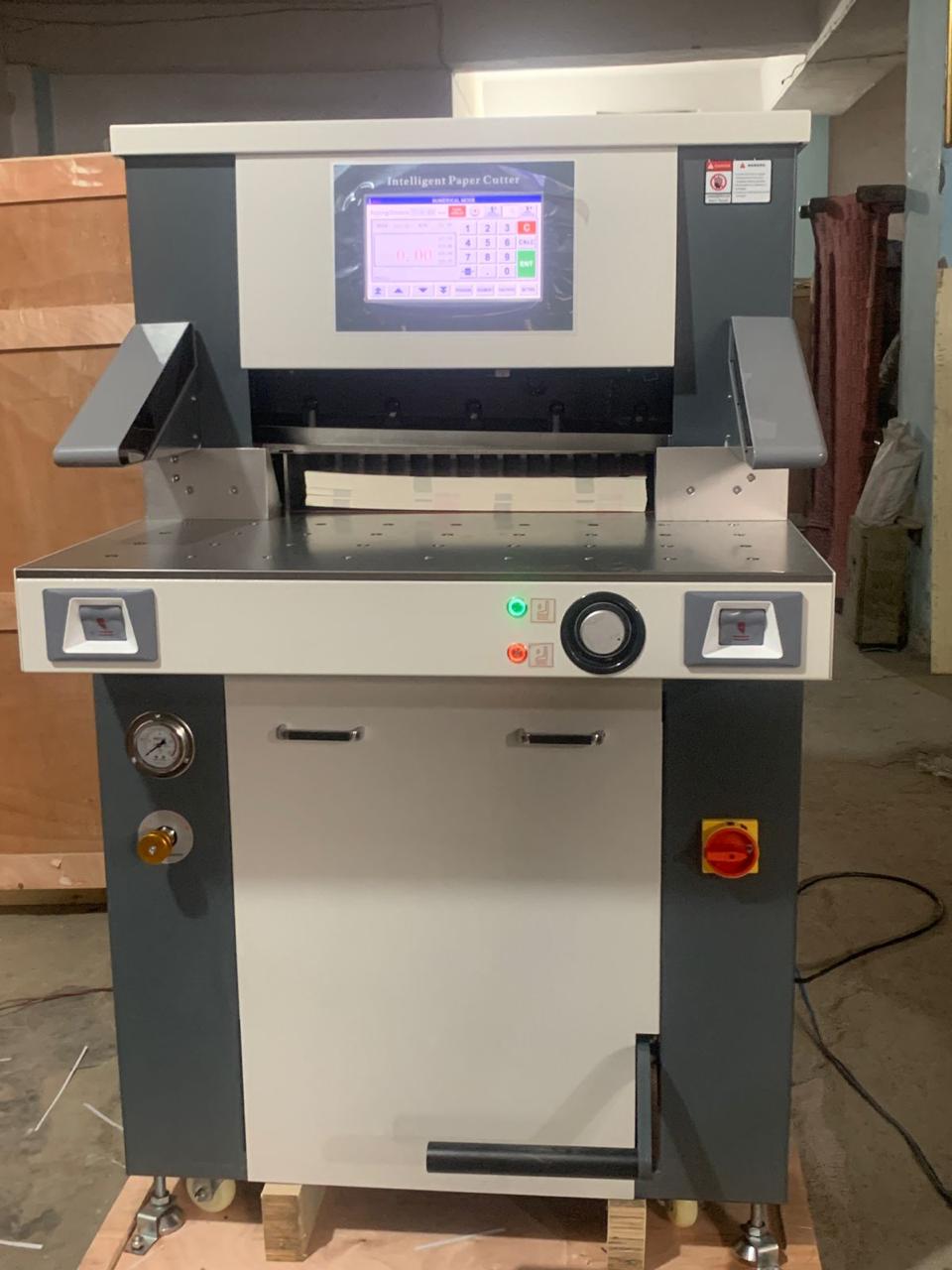

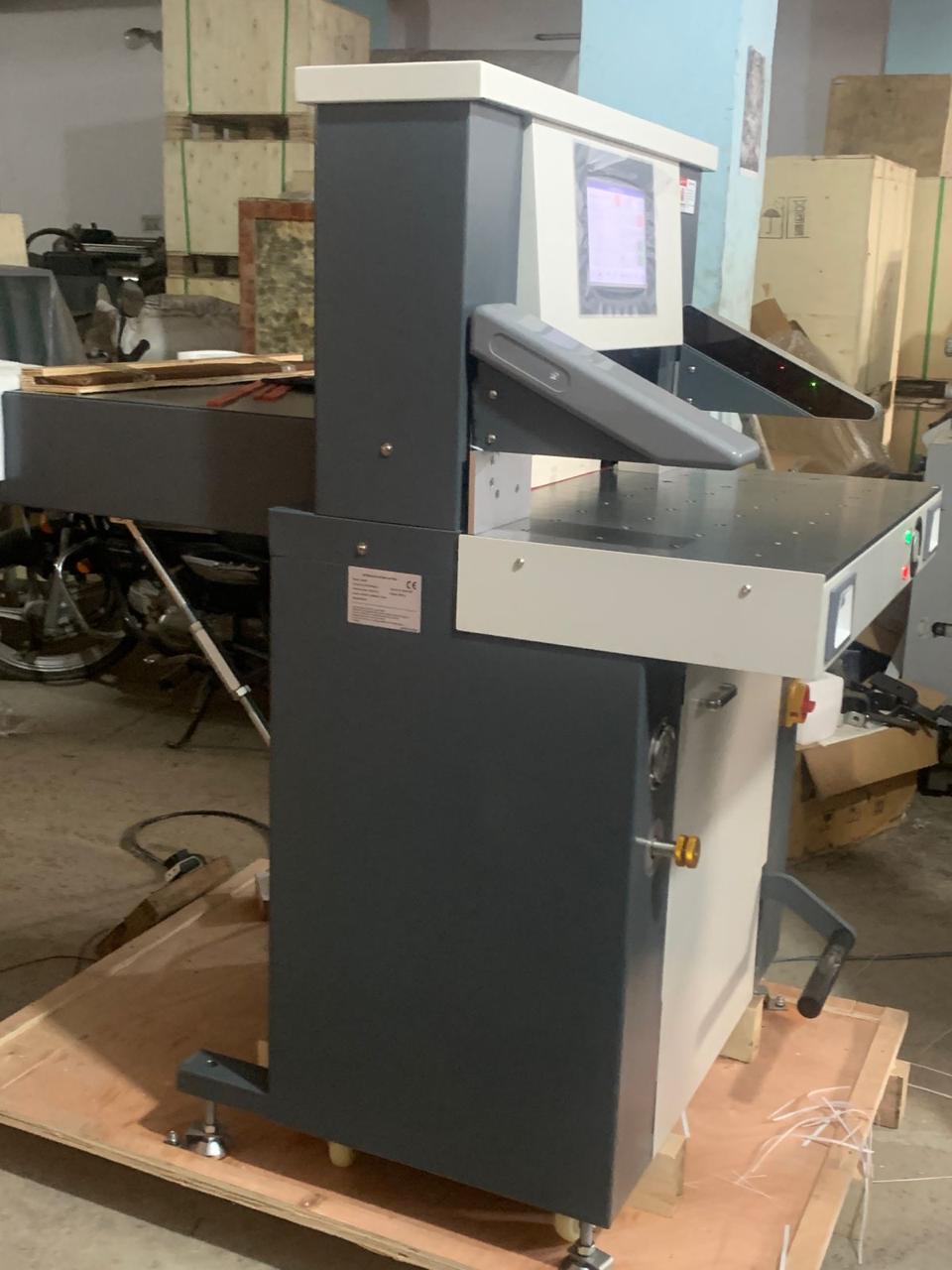

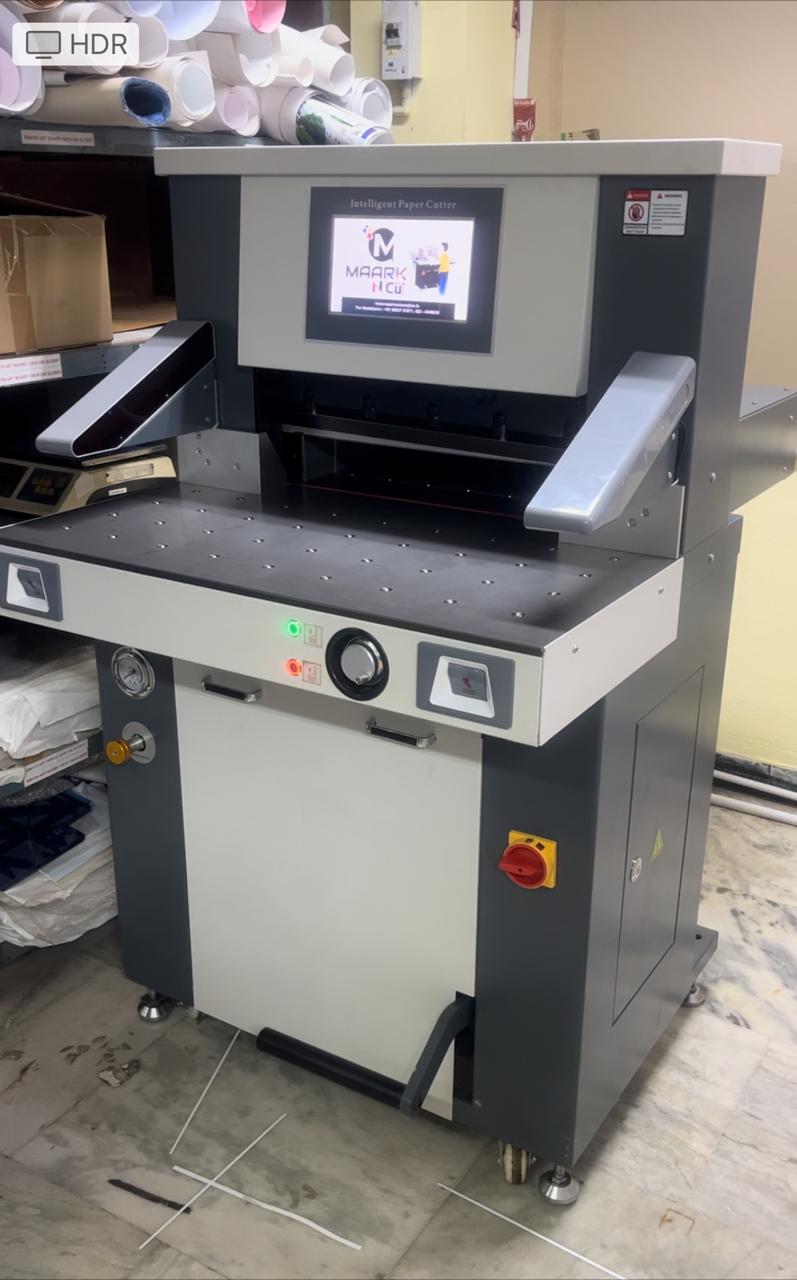

M520 HP Hydraulic Paper Cutting Machine

Features

Cutting thickness is 80mm.

Infrared for safety operation.

Man-machine interface design, 100 groups*96 cuts program

Back platform without groove design, overhanging ball screw push paper more stable.

Patent for oblique cutting paper, cutting more easily, suitable for thick paper cutting.

With floating balloon, 8 mm hard aluminium plate with chromium, more durable.

Push book platform can be folded, convenient transportation.

Dual hydraulic power control system, Paper pressure external regulating mechanism.

Mechanical foot, cut riding nail book pre- alignment more convenient, higher precision.

Specification

Max. Cutting Length:520 mm

Min. Cutting Length:30 mm

Cutting Thickness:80 mm

Cutting Precision:± 0.2 mm

Clamping Mode:Hydraulic+Mechanical Pedal

Front Platform:10 mm Hard Aluminium Bed

Display: 10.1" Touch Screen

Program:100*96 cuts

Power Supply:100*96 cuts

Power:220V 50Hz, 2.3 KW

Net Weight:about 450 Kg

Machine Dimension:1280 x 1010 x 1430 mm
