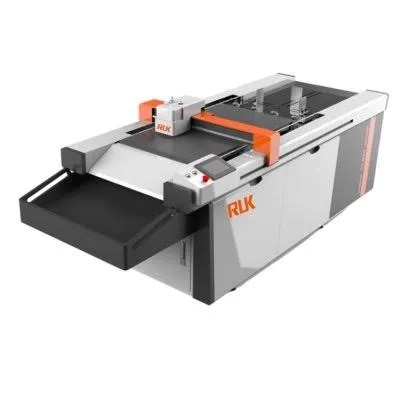

Ruk MKC-0604L

Advantages

GRAPHTEC BLADE

CREASING WHEEL

UNIVERSAL CUTTING TOOL

OSCILLATING TOOL

Specifications

MKC-0604L

Pump Power : 2,2KW

Fixed Power : 4KW

Effective Cutting Area : 1200*900mm

Overall Size : 2600*1400*1200mm

Operation Properties : Work with any CAD software, computer synchronously for quick data transmission, with auto material feeder device

Cutting Speed : 300-1200mm/s

Cutting Thickness : 10MM (according to different materials)

Cutting Materials : Sticker, card paper, PP paper, various corrugated board, red cardboard, honeycomb board

Standard Tool : Pen, cursor, creasing wheel, universal cutting tool, graphtec blade, CCD camera, small oscillating tool

Feeding Mode : Auto feeder

Fixed Method : Vacuum suction

Repeat Precision : ≤0.01mm

Software Resolution : 0.025

Interface : Ethernet port

Buffer Memory : Fast transmission for multi-page large file

Command Mode : HPGL compatible format

Control Panel : Touch screen

Driving System : Imported Servo motor, straight rail

Voltage/Power : AC 220V/380V±10% 50HZ

Working Environment : Temp: 0-35°, Humidity: 35%-80%

MKC-0806L

Pump Power : 2,2KW

Fixed Power : 4KW

Effective Cutting Area : 800*600mm

Overall Size : 2600*1400*1200mm

Operation Properties : Work with any CAD software, computer synchronously for quick data transmission, with auto material feeder device

Cutting Speed : 300-1200mm/s

Cutting Thickness : 10MM (according to different materials)

Cutting Materials : Sticker, card paper, PP paper, various corrugated board, red cardboard, honeycomb board

Standard Tool : Pen, cursor, creasing wheel, universal cutting tool, graphtec blade, CCD camera, small oscillating tool

Feeding Mode : Auto feeder

Fixed Method : Vacuum suction

Repeat Precision : ≤0.01mm

Software Resolution : 0.025

Interface : Ethernet port

Buffer Memory : Fast transmission for multi-page large file

Command Mode : HPGL compatible format

Control Panel : Touch screen

Driving System : Imported Servo motor, straight rail

Voltage/Power : AC 220V/380V±10% 50HZ

Working Environment : Temp: 0-35°, Humidity: 35%-80%
