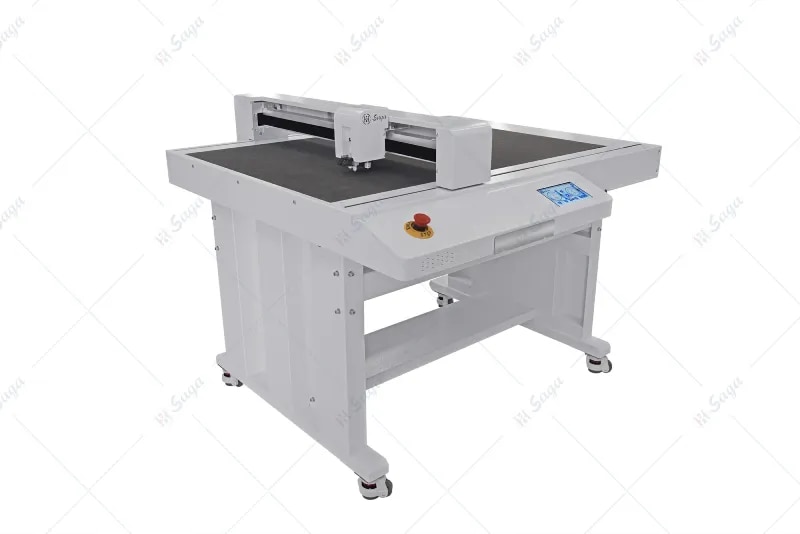

Saga FC T6698 Digital Die Cutting Flatbed

The Saga FC Series flatbed cutter including plug-in software is ideal for short run and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm. Using advanced digital contour cutting technology, the Flatbed Cutter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing and even drawing. FCT6698 is combin Main Feature 1. Intelligent control system and panel. 2. The running pressure and speed are greatly increased. 3. Quick media placement Real-time monitoring of the job progress. 4. Four tools in four combination. 5. Upgraded cutting and creasing speed/pressure. 6. Mixed contour cutting. 7. REAR cutting. 8. Convenient offline output 9.Linear guides make job more accurate Application:Corrugated paper/ magnetic sticker / Cardboard/ coated paper, kraft paper, PVC, PET, etc.

Main Feature

Intelligent control system and panel.

The running pressure and speed are greatly increased.

Quick media placement Real-time monitoring of the job progress.

Four tools in four combination.

Upgraded cutting and creasing speed/pressure.

Mixed contour cutting.

REAR cutting.

Convenient offline output

inear guides make job more accurate

Machine configuration

Model name : SG-FCT6698

Cutting control system : X- High-power brushless servo motor , Y- High-power brushless servo motor

Positioning sensor type : Digital camera (CCD）

Control panel : 7 inch capacitive touch screen

Number of tool holders : Double tool holders

Blade types : Blade, creasing tool and pen

Number of tangential blade : Double tool holders

Tangential blade types : Blade, creasing tool

Machine performance

Media hold method : Vacuum suction

Scanning code type : Mark/QR code

Maximum width : 730mmX1065mm

Maximum cutting size : 650mmX1020mm

Scanning speed : 5-10s

Maximum actual cutting speed : 100mm/s-700mm/s 10mm/s Step

Maximum Cutting Force : Creasing：0-1900gf（10gf 1Step）, Blade：0-1900gf（10gf 1Step）

Maximum Paper Weight : 600g（Varies from different cutting materials）

Minimum character cutting size : About 10mm²（Varies from contour paterns and medias）

Mechanical resolution : 0.02mm

Programmable resolution : HPGL 0.025mm

Repeat precision : ≤0.05mm

Cutting Media Types : Self-adhesive sticker, cardboard, corrugated paper, etc.

Software and compatibility

Connectivity : USB , TCP , WiFi, U disk , Interface

Software and compatibility : Corel Draw/ Illustrator Plug-in（U disk Interface）
