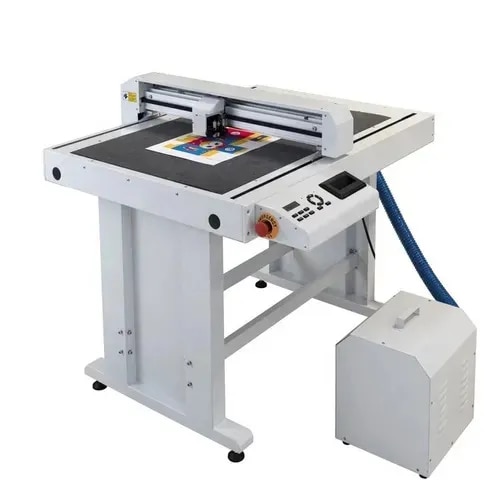

Saga MHC 4560 Digital Die Cutting Flatbed

ADVANTAGES

Paper Size : 18.5” x 24.5”

Cutting Size : 17.5” x 23.5”

This Series flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing materials include paper, card, synthetics, films and kinds of labels, up to 500gsm.

Using advanced digital contour cutting technology,no cutting dies required, Hamada Cut flatbed cutters are able to produce the sheets to any shapes, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing, perforating and even drawing.

Various models are available; the desktop MHC4560 model offers maximum cutting area up to 450x600mm, ideal for 2 or more sheets side by side.

Main Features

Plug and play, simple installation, no additional drivers needed.

Direct USB makes the flatbed cutter reliable and convenient.

Advanced digital contour cutting technology- high resolution optical sensor read barcode on the

printed files automatically. No cutting dies required.

Pneumatic vacuum suction of media.

Dual cutting head, cutting and creasing in one compact unit.

Silent, precise and powerful servo drivers for best cutting results.

Contour cutter cuts thin films and card up to 500gsm / 600micron.

Cuts typical SRA3 sheet in 30-60 seconds

MFC4560

Maximum media area : 469x631mm(18.46''x24.84'')

Effective Contour Cutting Area : 459x611mm (18.07''x24.05'')

Stand : optional

Media Fixture Method : 400w vacuum suction system

Acoustic cover for vacuum pump : optional

Silencer : optional

Dual Cutting Head : Blade & Ball-bearing Creasing Tool (a calibration tool included)

Working Method : full cutting & kiss cut ,crease, perforate ,draw

Cutting Technology : Advanced digital contour cutting technology

Registration System : High resolution optical registration system or CCD Camera positioning system

Cutting Software : Stand-alone software DragonCut Pro (PC only)

Interface : USB

Working Mode : PC Control, Windows 64bit supported

MechanicalResolution : 0.01254mm

Programmable resolution : HPGL0.025mm

Max. Cutting Speed : 600mm/s

Max. down Force : 510g

Max. Cutting Depth : 0.6mm

Repeat Precision : ≤0.05mm

Control system : Servo

Working Voltage : 110V-240V auto switching

Working Environment : 5 to 35 Degrees, no dust, flat working platform
