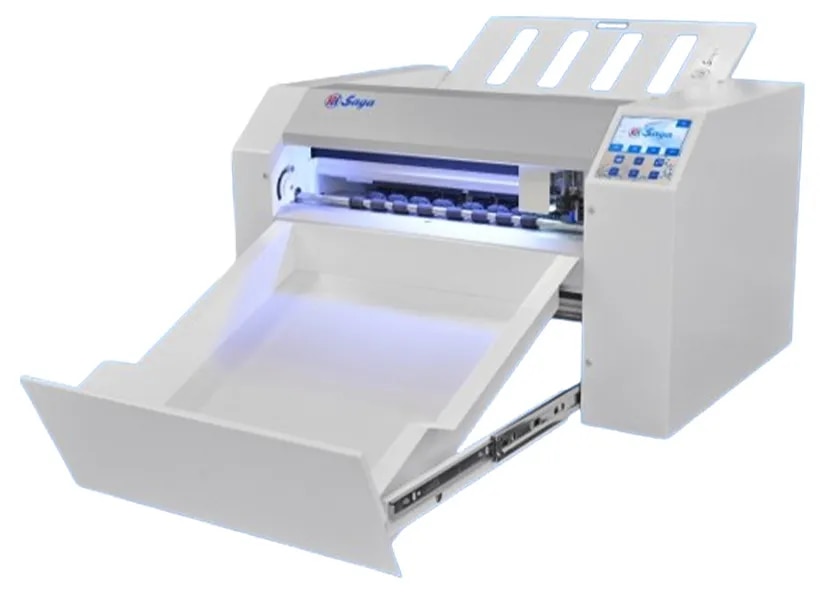

Saga 2310 Digital Die Cutting Sheetfed Machine

Double-knife design, half cut, full cut, point cut, indentation, drawing;

4.3-inch capacitive touch screen, compatible with physical buttons, more

convenient to operate;

CCD automatic identification and positioning, support mixed cutting of

QR codes of different color materials;

Multiple online modes, USB, U disk, offline, network cable, WIFI;

The patented hidden storage box makes it easier to use;

Support tool-free disassembly to maximize cost savings;

Self-developed CutArtist software, support one-click extraction of file

paths, and control the machine in the background.

Machine configuration

Model name : SG-SC 2310

Cutting control system : High-power brushless servo motor

Positioning sensor type : Digital camera (CCD）

Control panel : 4.3 inch capacitive touch screen

Number of tool holders : Double tool holders

Blade types : Blade, creasing tool and pen

Machine performance

Cutting precision (Patterns) : Three patterns（Speed first, Balance first, Precision first）

Sheet feeding method : Friction feed

Sheet feeding : Up to 100 pcs depends on thickness of the paperm

Scanning code type : Round marker, corner marker, QR code

Maximum cutting size : 330mmX483mm

Scanning speed : About 5s

Cutting speed : 10-1200

Cutting force : 0-900

Maximum paper weight : 250g(Depend on varaible material）

Minimum cutting character : About 5mm² (Depend on varaible material and graphics)

Mechanical resolution : 0.02mm

Programmable resolution : HPGL 0.025mm

Software and compatibility

Connectivity : USB、LAN、WiFi 、U disk

Software and compatibility : CutArtist，Corel Draw / Illustrator Plugin

Power and working environment requirements

Working power : Maximum 150W

Voltage and current : 100VAC-240VAC, 50/60 Hz，Maximum current4A

Operation environment : Humidity:30% -75%RH (Non-condensing)）

Dimensions and Weight

Package dimensions : L882mm×W682mm×H609mm

Actual dimensions : L719mm×W503mm×H436.5mm

NW/GW : 37±1kg/56±1kg

This parameter is subject to change without prior notice. The company reserves the right of final interpretation
