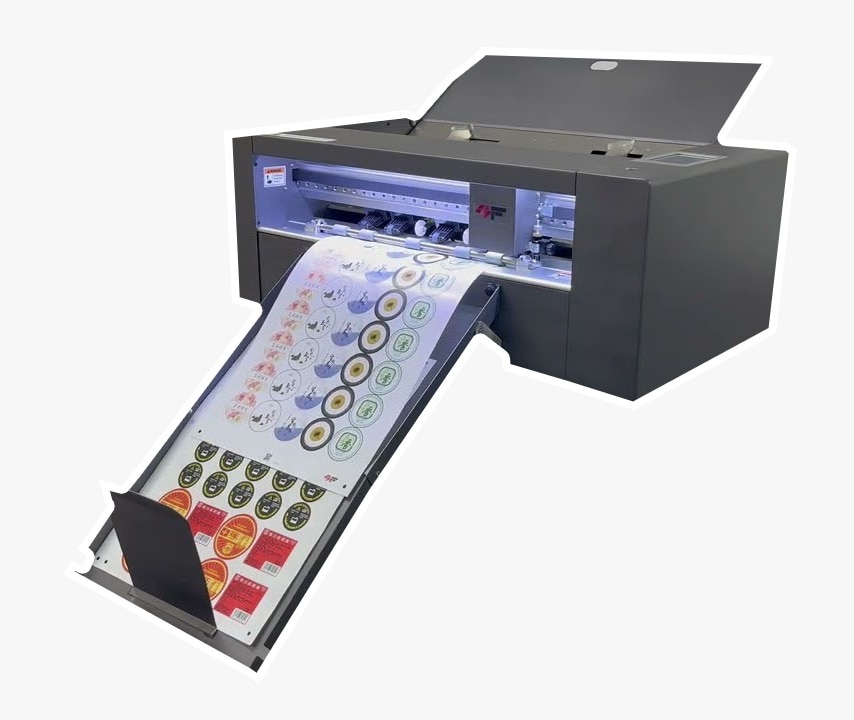

SF-350 Digital Label Sheet Cutter

Item : SF-350

Configuration : Automatic feeding sheet cutter

SERVO MOTOR

Media size : Width : 185 to 350mm. Length : 150 to 500mm

A4,A3, 12 x 18 , 13 x 19

Maximum cutting speed : 1500 mm/s (10 to 1500 mm/s )

Registration Sysytem : High Resolution CCD Camera

Auto Sheet Capacity : 13 x 19 , 200 sheets

Cutting Motor : Servo Motor

Max force : 400g

Minimum character size : Approx. 5 mm square

Media Thickness : 180gm² - 350g/m

Feeding time : 2 seconds

Machincial Resolution : 0.01254 mm

Standard interfaces : USB2.0 (Full Speed) / U-Flash / Ethernet

Command sets : HP-GL

Operating screen : 4.3-inch touch LCD

Power supply : 100 to 240 V AC, 50/60 Hz (Auto switching)

Power consumption : 60W

Operating environment : Temperature : 10 to 35 degree,

Humidity : 35 to 75% RH (non-condensing)

External Dimensions(mm) (W × D × H) : Exit tray : 406 x 462 x 186 mm

Exit tray+Cutter+Media support tray : 1109 x 747 x 594 mm

Weight : 33kg/36kg

Packing size : 870 x 550 x 580 MM / 0.28CBM
