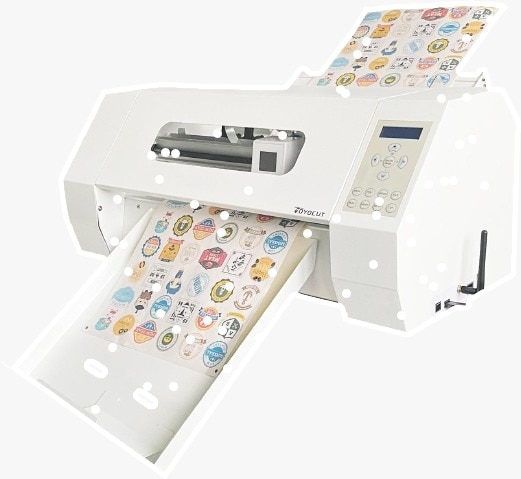

TOYOCUT B13 Pro Digital Label Sheet Cutter

WIFI Transmission

CDR send directly

Hold 100 pages of material

Only 5 blank around material

1200 g super large knife pressure easy to cut a variety of materials. Up to four interfacese meet different needs of customers

Materials only needs to be retained 5 mm blank on all sides

Even if the material is inclined, cutter also cut accurately

High precision sensor identify mark on various badcground materials

Specification

MODEL : TOYOCUT B13 Pro

Max Media Width : 335 mm

Max cutting Width : 320 mm

Mark : 5mm round or L mark for camera

Blank size : 5 mm blank around the material

Number of Material : 100 pages/ 18 mm thickness

Main board : High speed Arithmetic Microprocessor, 32Bit + 18Bit (MCU Dual Core) 1GB cache

Interface : USB/U DISK/WIFI/LAN

Control Panel : Thin film switch (life 1 million times)

Driver : Digital DC, step motor, Micro-step Driver

Display : 2*16 high resolution LCD+1.7 Inch icd for camera

Drawing Instruction : DMPL/HP-GL

Max Cutting Speed : 1200mm/s

Max Cutting Thickness : 1 mm

Pressure : 50g-800g (160 grades digital Adjustable)

Mechanical Precision : 0.25mm

Repeatable Preceision : <±0.1mm
